Dinkle DK4N Din Rail AC Terminal Block

This terminal block is versatile and reliable. It is built with customizable terminals that can be stacked to your needs, offering flexibility and convenience in your setup. The perfect solution for making AC (alternating current) connections in your application.

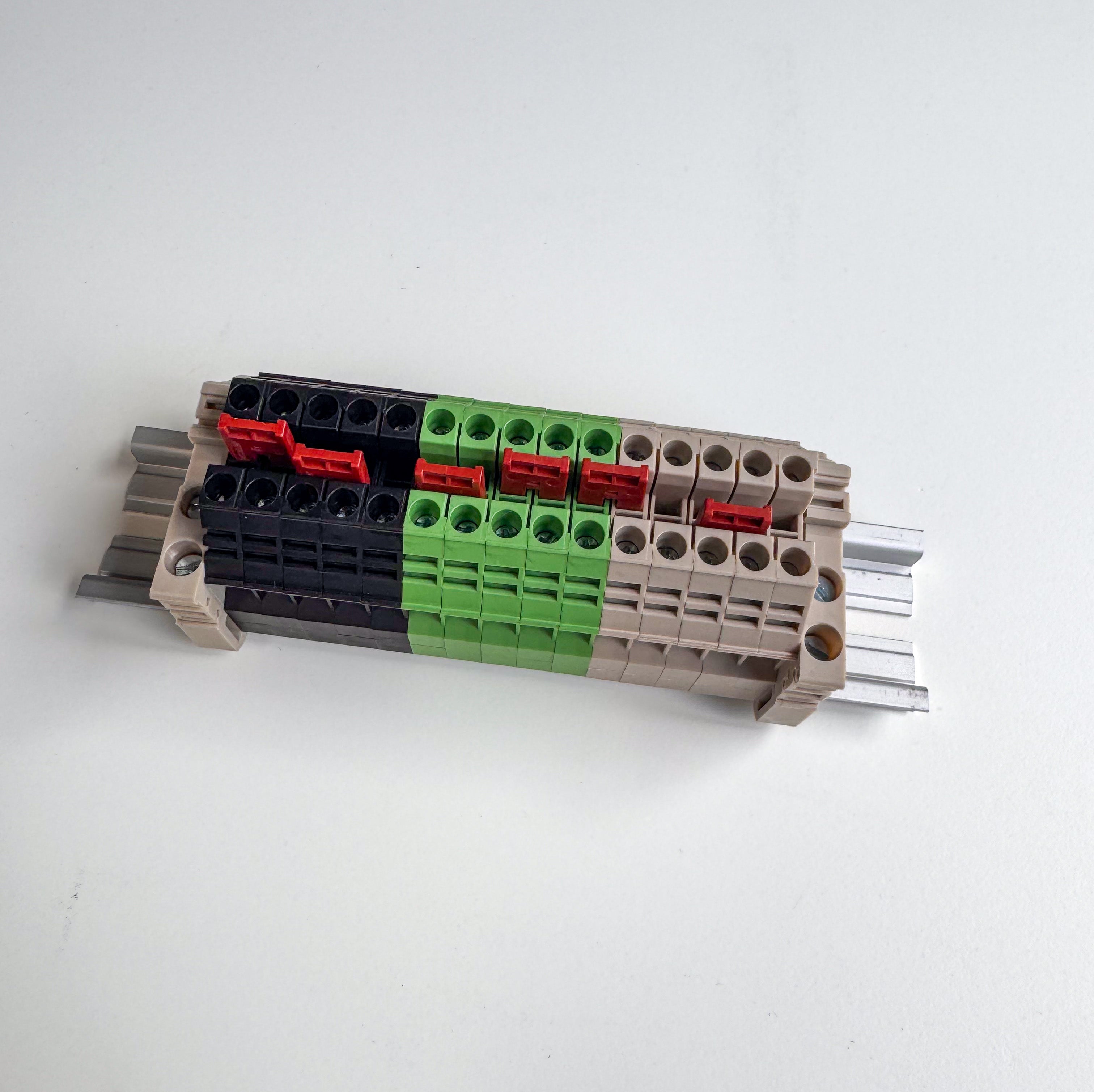

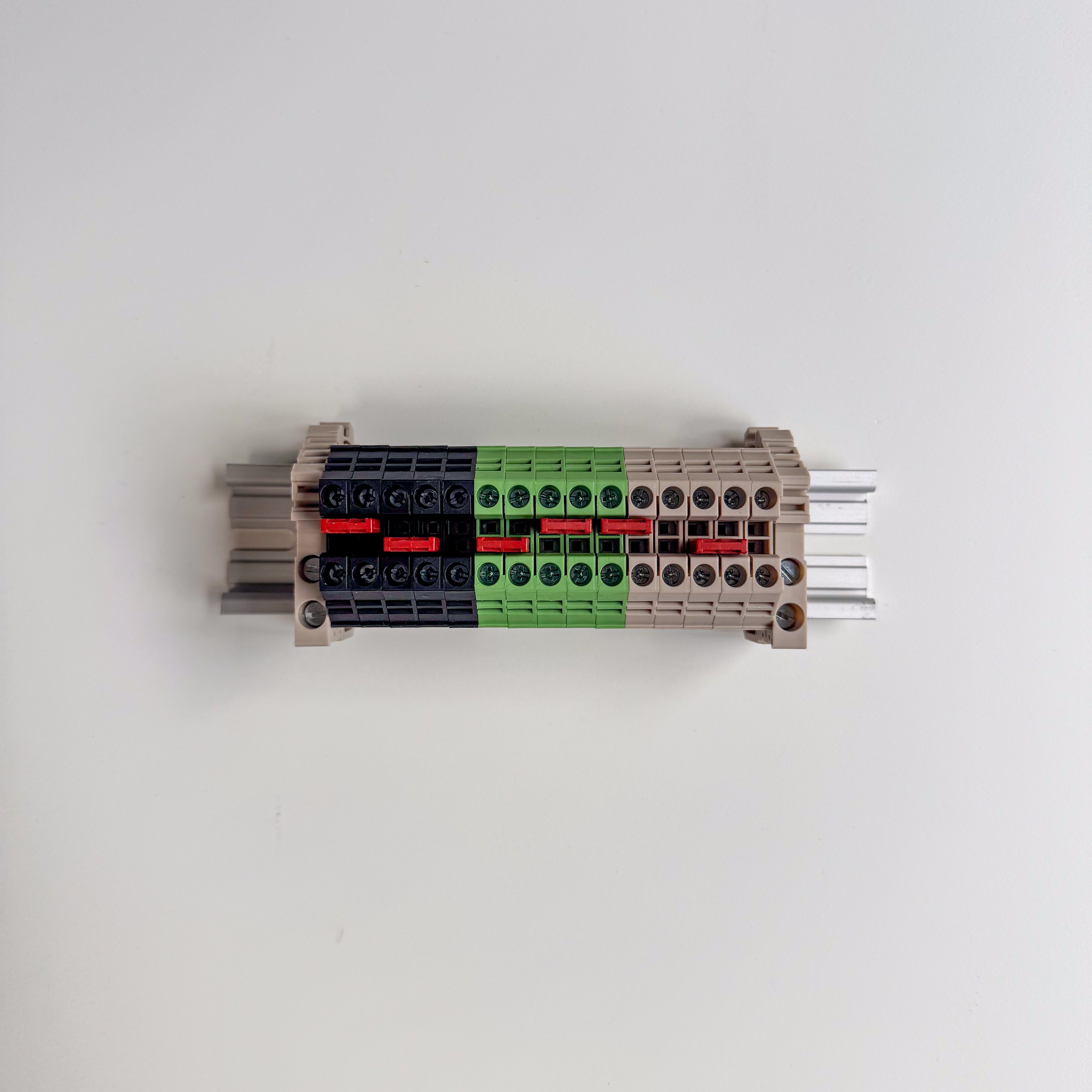

This assembly includes 5 DK4N, 5 DK4N-GN, and 5 DK4N-BK Dinkle terminal blocks, 2 SS2 end brackets, and 6 DSS4N-02P press-fit jumpers, all mounted on a 6" aluminum dinn rail. The 10 gauge inputs are all in common.

Technical Data

(UL) Rated Voltage: 600V

Rated Current: 30A

Conductor Cross-section, Solid (AWG): 22-10

Conductor Cross-section, Flexible (AWG): 22-10

Torque (N-m): 1.2 Screw: M4

Wire Strip Length: 12-14mm

Insulating Material: PA

TxHxW (mm): 8 x 45 x 41.75 (Individual Blocks)

Jumper/Bridge: Press-fit/Insertion.
