Dinkle DK6N Solar Combiner DIN Rail Terminal Blocks, 10 Gang, 8-20 AWG, 50 Amp, 600 Volt Power Distribution

The Dinkle Terminal Block has a compact design that saves wiring space. The high reliability and robust design adapts vibration and harsh thermal variation to prevent terminal connection fault.

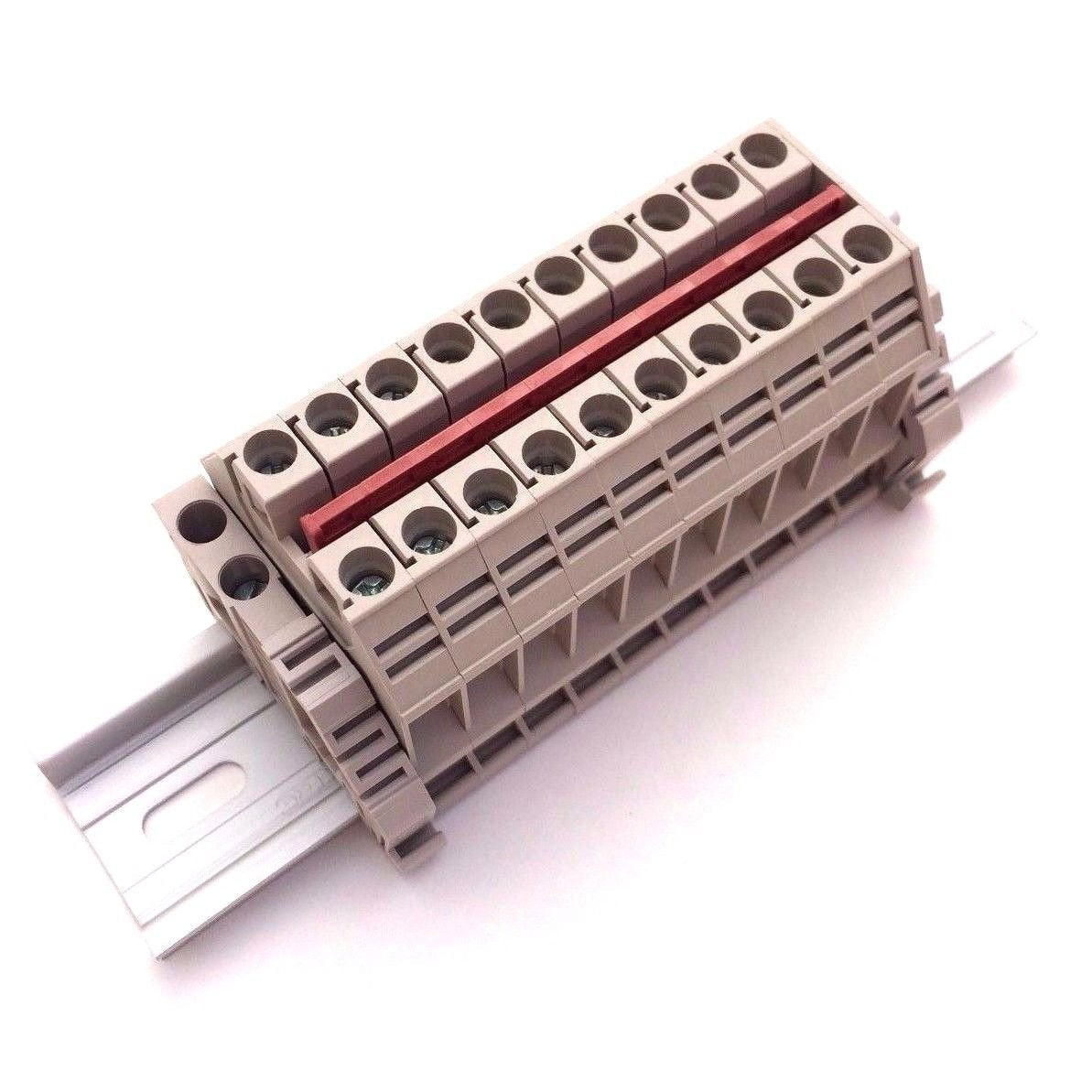

This assembly includes 10 DK6N Dinkle terminal blocks, 2 SS2 end brackets, and a DSS6N-10P press-fit jumper, all mounted on a 6" aluminum dinn rail. The 8 gauge inputs are all in common.

Technical Data

(UL) Rated Voltage: 600V

Rated Current: 50A

Conductor Cross-section, Solid (AWG): 20-8

Conductor Cross-section, Flexible (AWG): 20-8

Torque (N-m): 1.2 Screw: M4

Wire Strip Length: 12-14mm

Insulating Material: PA

TxHxW (mm): 8 x 45 x 41.75 (Individual Blocks)

Jumper/Bridge: Press-fit/Insertion.
