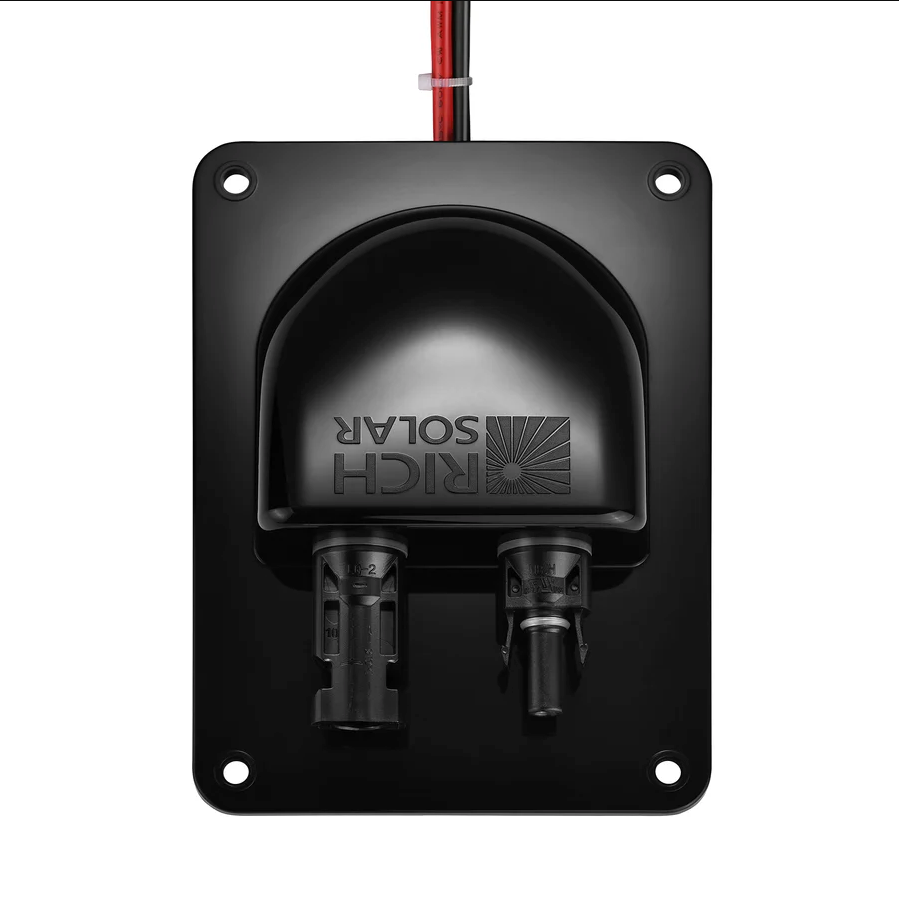

Cable Entry Plate | IP68 1FT 10AWG Wires and Solar Connectors

General

• Dimensions (L×W×H): 150×110×40 mm (5.9×4.3×1.6 in)
• Weight: 131 g (0.29 lb)
• Material: Flame-Retardant Polypropylene (PP)
• Color: Black
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)

Solar Connector Details

• Material: PC Shell + Tin-Plated Copper
• Waterproof Rating: IP68
• Flame Retardant: UL94V0 Certified
• Certification: UL Listed

Electrical Ratings

• Max Current: 23.7A
• Max Voltage: 600V (Wire Rating)
• Wire Standard: UL 1015 10AWG (Red/Black)
• Wire Conductor: Tin-Plated Copper
• Wire Insulation: PVC (VW-1 Fire Rated)
• Wire Temperature Range: -15°C to 105°C (5°F to 221°F)
