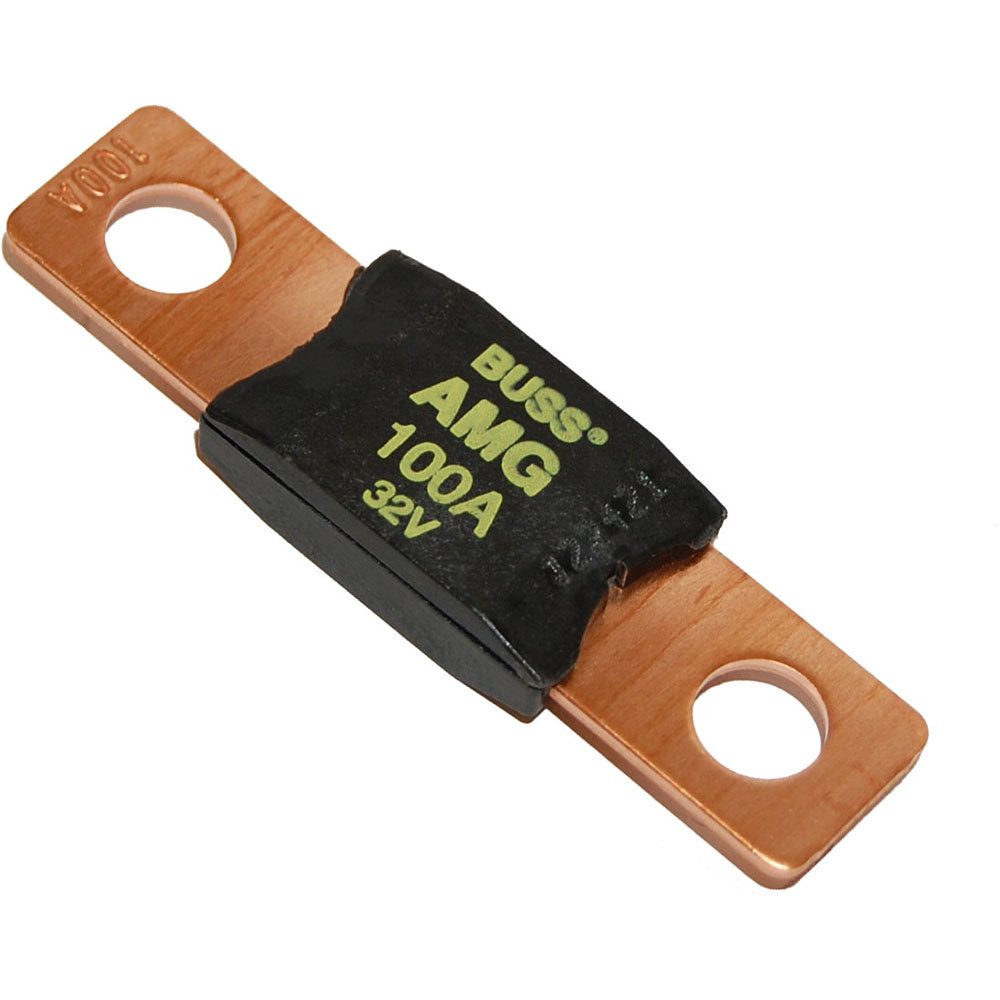

LittleFuse MEGA/AMG Fuse - 32V (0298)
Couldn't load pickup availability
The MEGA® Fuse is designed for high current circuit protection up to 500A with “Diffusion Pill Technology.” The MEGA® Fuse also provides time delay characteristics. Designed and patented by Littelfuse, the MEGA® Fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection
Specifications
Quantity: 1
Voltage Rating: 32 VDC
Interrupting Rating: 2000A @ 32 VDC
Recommended Environmental Temperature: -40˚C to + 125˚C
Terminals Materials: Copper (Silver plated copper available)
Housing Material: PPA-GF33HS (U.L. 94 Flammability rating - HB) Clear Top
Housing Material: PES (top) (U.L. 94 Flammability rating - V0) PPA-GF33HS (bottom) (U.L. 94 Flammability rating - HB)
Complies with: ISO 8820-5
